DIN RECEPTACLES (continued)
49
RECEPTACLE
with Closed Circuit Switch
RECEPTACLE
for Chassis or Panel Mounting
For shielded and extended barrel plugs

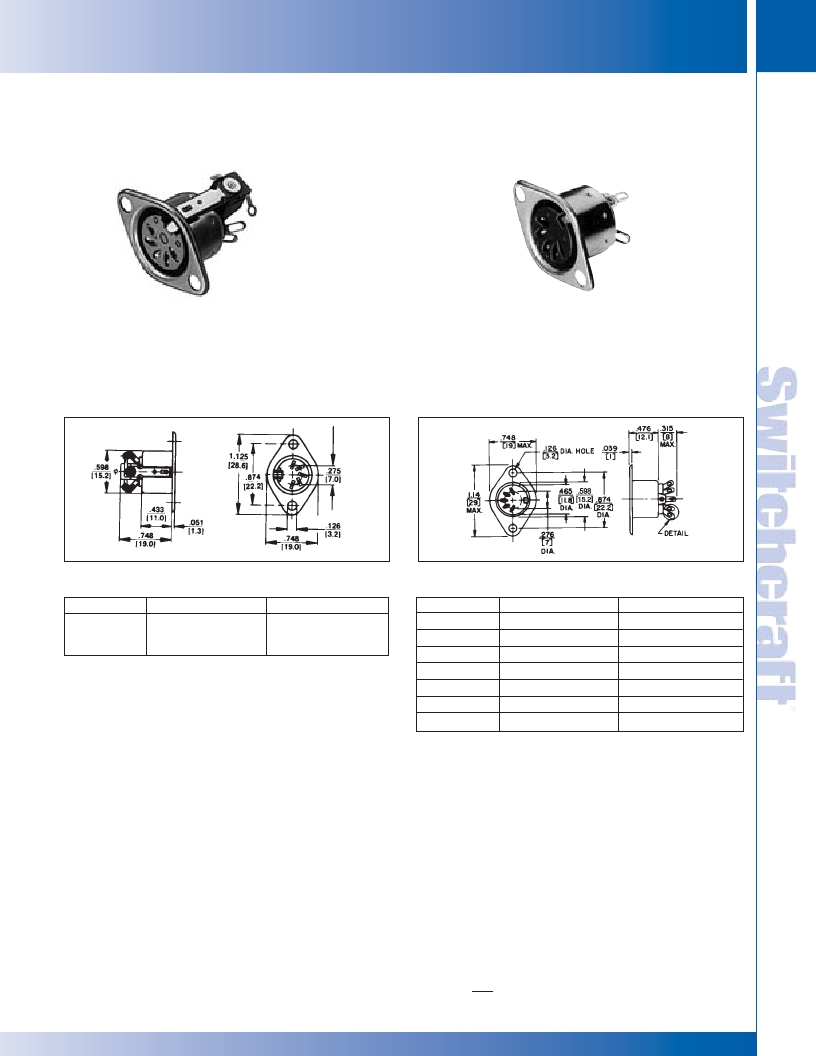

TYPE 59GB3F – TYPICAL
Unique 3 and 5 contact receptacles include a 1-B (closed
circuit) switch which is mounted to drawn metal shell. Switch
is actuated by the shell of the mating plug. Receptacles also
provide complete shielding through the ground contact.
Flared solder terminals.
ORDERING INFORMATION
TYPE 57GB5F – TYPICAL – FLARED SOLDER
TERMINALS
Drawn metal recessed shell with mounting flange and ground
contact. Available flared solder terminals. Part Number
58GB3F features two extra blanks in insert for proper mating
(5 pins at 180°) plug where applications may require greater
connector flexibility. Flared solder terminals standard.
ORDERING INFORMATION
Part Number
Description
Contact Arrangement
Part Number
Descriptions
Contact Arrangement
3 contacts at 180° plus
? 59GB3F closed-circuit switch B
(Schematic #5)
? Available on special order only; contact Switchcraft for price and delivery.
? 57GB3F
? 57GB5F
? 60GB4F
? 61GB5F
? 61GB6F
? 62GB7F
? 62GB8F
3 contacts at 180°
5 contacts at 180°
4 contacts at 210°
5 contacts at 240°
6 contacts at 240°
7 contacts at 270°
8 contacts at 270°
B
F
D
E
G
H
N
? Available on special order only; contact Switchcraft for price and delivery.
DIMENSIONS ARE FOR REFERENCE ONLY
Inch
(mm)
SWITCHCRAFT, INC. 5555 N. Elston Ave. ? Chicago, IL 60630
